The Gyroscope Levitation of Eric Laithwaite
Eric Laithwaite, professor of heavy electrical engineering at London's Imperial College of Science and Technology, said the motor is based on the gyroscope, a rapidly spinning top that defies gravity. Gyroscopes already are used to guide spaceships.
"The motor is not easy to explain. If it was, others would have tried to produce one by now," said Laithwaite, who described himself as an astro engineer.
Laithwaite began working on the motor about six months ago after Edwin Rickman, who works with an electrical engineering firm, came to him with the idea. Rickman had patented it after he said it came to him in recurring dreams. Laithwaite incorporated in the device ideas of another amateur inventor, Alex Jones.
Although Laithwaite is far from the production stage with his motor to defy gravity, the 53-year old professor demonstrated his principle Friday at the Royal Institution at London.
Eric
Laithwaite
[If images fail to appear go to the link at the end of this article: Ed]
Inside a box he brought
before his distinguished audience were two electrically driven gyroscopes, each
placed on a central pivot. Laithwaite made the gyroscopes rotate at high speed,
and they rose into the air on the arms until they reached a curved rail that
pushed them down again. The process then repeated itself. [If images fail to appear go to the link at the end of this article: Ed]
With the two gyroscopes motionless, the box weighed 20 pounds on an ordinary kitchen scale. With the gyroscopes spinning, the contraption weighed 15 pounds.
Laithwaite said the loss of weight corresponded to the gravity loss produced by the spinning gyroscopes. Theoretically, the machine could produce weightlessness, Laithwaite said. A spaceship with his device could be blasted from the earth's gravitational field with conventional rocket fuel, Laithewaite said. Then, without friction to hamper the anti-gravity engine, nuclear power or solar energy could begin operating the gyroscopes and to drive the vehicle to other solar systems, he said.
Laithwaite is the inventor of the electrical linear motor capable of propelling a device through strong magnetic currents. He said the antigravity motor also could be adapted to drive ships and land vehicles silently but added: "Man is not interested in traveling horizontally. He always wants to go up."
Laithwaite said the antigravity motor is based on electromagnetism and vector multiplication "too complicated to explain."
Then he tried: "Let me put it this way: You take a go-kart with no engine and sit in it. It is loaded with a box of lead balls. If you throw one ball out behind you, you move forward a little. Throw another and you move farther still and so on. But if these lead balls were attached to a strong elastic band and could be sprung back into the go-kart, you would have continuous propulsion. That is what a gyroscope does when it moves from one plane to another."
"Laithwaite’s
Amazing Invention"
(Unidentified magazine, Jan. 2, 1975)
Now Professor Laithwaite, who is already famous for inventing the linear induction motor, has demonstrated that his machine actually works. When switched on it reduces its weight!
If the machine is truly functional it must be but a short step to building a machine that will reduce its weight so much that it will simply float away.
The professor insists that he has discovered a principle that will solve the problems of interstellar flight. “With just a cupful of uranium we could reach the nearest star”, he says.
The professor’s prototype antigravity machine was demonstrated to the historic Royal Institution recently. He placed it on a pair of kitchen scales to prove that it does reduce its weight when in action.
Opinions vary whether or not it did are sharply divided. A disclaimer appeared in the prestigious New Scientist magazine soon after. The good professor explained patiently to us that the writer had no idea of what he had demonstrated and did not understand the principles involved.
The machine itself consists of a central upright rod which is spun by means of an electric motor at its base. Towards the top of the rod two smaller rods connect laterally. On the end of each is a brass gyroscope.
When these gyroscopes are spun with a blast of compressed air their movement causes the hinged rods to rise and revolve around the main spindle. This revolution is aided by the electric motor.
A curved rail counteracts their tendency to rise and forces them down again. The reaction to this provides the thrust for lifting, as the cycle repeats itself again and again.
The professor insists that he has no quarrel with Newtonian laws of motion, although many claims have been made by less well-informed commentators that he has. “But I do think Newton’s laws need modifying”, he comments.
Newton, it seems, rather overlooked the problems of gyroscopes and their tendency to do unexpected things. Laithwaite contends that Newton’s laws of motion should be modified to account for gyroscopic precessions.
The secret of his anti-gravity machine lies in the fact that no energy is required to return the gyroscope arms to their starting positions --- gyroscopes do that naturally as they precess.
It’s a difficult problem to explain the workings of the machine. Only time will tell us, the general public, if the professor has done his homework properly.
The scientist himself intends to demonstrate that he has indeed found a new kind of "inertial drive". "By 1976", he says, "I intend to lift a man off the floor of the Royal Institution".
Finally it should be known that the professor is no "crackpot" inventor. He has the following degrees: BSc., MSc., PhD., DSc., and has won international honors for his engineering achievements.
New Scientist (14 Nov. 1974):
"Eric Laithwaite Defies
Newton"
by Robert
Walgate
The machine is pictured here in action on a kitchen spring balance, just as he demonstrated it. The machine uses two precessing tops whose precession (slow motion of the axis of rotation about a vertical axis under the action of gravity) is assisted by the motor at the bottom. This makes the tops rise. The tops are restrained from rising by a track like a big dipper, and as the tops follow the track the whole machine jogs up and down. Professor Laithwaite contends that there is more jog up than jog down.
Laithwaite began his discourse with a series of entertainments from his work on electromagnetic levitation, draing applause and laughter from his evening dressed audience like a good juggler, and throwing in his usual flamboyant claims. All this was to prove Don Quixote’s phrase "all things are possible". Then he moved into h=gyros (mmore exactly, tops).
Tops are certainly fascinating. They fascinated the Victorians and the Edwardians after them, and many a Newtonian treatise has been written about their motion. They are used with great precision in gyroscopes in ships, submarines, aeroplanes and rockets, so there must be some understanding of their motion. But Laithwaite contended that the familiar precessing top that can be bought in the toyshop, being of a different design (not supported through its center of gravity), is not properly described by Newton’s laws of motion.
He drew the curtain covering the blackboard to reveal a modification of Newton’s second law (in an inertial frame) that bears the same relation to the usual equation as does the equation for the voltage on a resistance, capacitance and inductance to Ohm’s law.
In practical terms he had four main contentions about gyroscopic precession. First, he believes that the angular momentum of precession (about a vertical axis) is created out of nothing, so that angular momentum is not conserved about that axis in direct contradiction of Newton’s mechanics; second, he believes the precession is not accompanied by any centrifugal force (the force you feel if you swing a bucket around in the garden); third, he contended that it requires no force to stop the precession; and fourth that if the precession is speeded up, the tops (which certainly rise) do so without there being any consequent downward reaction.
It is my opinion that none of these contentions was proved by the experiments Laithwaite performed at the Royal Institution during his discourse. Perhaps he will be able to do more precise experiments which will bear him out, but until he does so his case remains at least unproven. To take just one example --- and the most spectacular --- his anti-gravity machine weighed to within half a pound of the upper limit of the scales (where there was a mechanical stop). So even if the reaction on the scales was reduced during one part of the machine’s cycle (and it indeed went down 5 pounds out of its total 20), the reaction would not have shown on the scales if it had gone above 20 pounds on the least of the cycle. The needle in fact swung violently between its upper limit and 15 pounds.
You have probably got the impression by now that I am skeptical of Eric Laithwaite’s views on the gyro. You would be right. I believe he has got it wrong by changing fields too quickly and jumping to conclusions --- or else we are all being taken for a marvelous ride! Yet he said in his discourse that his "life had led up to this moment", and he appeared to be extremely serious about his views.
If indeed he is not joking he is beginning to bear a strong and sad resemblance to one of his heroes, Don Quixote. A giant (figuratively and physically), he is gentle (he is an expert on butterflies) and has all Don Quixote’s lovable but arrogant naivity. This time he has tilted at windmills.
Newton's Point of View
Newton, though long dead, can still give us his views through his equations of motion. The first point he might make about Laithwaite’s experiments is that they involved "fast" tops. These are tops that have far more kinetic energy in the gravitational field (weight times distance the center of gravity of the top can move). Such tops have a deceptively simple motion that can confuse generalization to slow tops.
One example of this is the question of the "creation" of angular momentum about a vertical axis when the top begins to precess. In fact the top, when released from a stationary horizontal position, falls vertically until has a component of its own high internal angular momentum along the vertical --- just enough to compensate for the angular moentum of precession. This fall (which indetail is a damped out nutation) is hardly noticeable in a fast top but is obvious in a slow one. Hence the creation of the angular momentum of precession.
A similar remark applies to the centrifugal force of precession; if a top is fast the centrifugal force is only a small fraction of the weight of the top, so it is hardly noticeable. For a slow top the force becomes more important as the precession speeds up, and this is one of the contributions to the falling over of a toy top on its support as it slows down.
Next, according to our old friend Newton, a force is certainly needed to stop a precessing top, albeit a small one. The exact motion of the top after it has been stopped depends on the details of its previous motion. So in both the case of the centrifugal force and stopping the precession there is a simple test by which Newton’s and Laithwaite’s contentions can be distinguished.
Finally there is the question of the reactionless rise of an assisted, precessing top. Laithwaite agrees that the exact amount of energy needed to lift the top must be introduced by twisting its vertical support, so there is no gaining something for nothing on that score. Newton would argue that no vertical reaction was necessary anyway once the top started upwards (just as no extra reaction is necessary on a crane when it is steadily lifting its load). And to test the contention that the machine gets lighter, Newton would ask Laithwaite to measure the impulse (force times time of action), not the force itself. Such sophistication is beyond a set of kitchen scales.
Propulsion System
Eric Laithwaite & William
Dawson
Foreign Application Priority Data
May 05, 1994[GB] 9408982
Current U.S. Class: 74/5.34; 74/84S
Intern'l Class: G01C 019/02; F03G 003/08
Field of Search: 74/5.34,5.37,5.22,84 R,84 S
References Cited
U.S. Patent Documents
USP # 5,335,561 ~ Aug., 1994 ~ Harvey ~ Cl. 74/84.
Foreign Patent Documents
2,293,608 Jul., 1976 FR.
23-41 245 May., 1975 DE.
35 23,160 Jan., 1987 DE 74/5.
60-56,182 Apr., 1985 JP 74/5.
2,090,404 Jul., 1982 GB 74/5.
2,207,753 Feb., 1989 GB.
2,209,832 May., 1989 GB 74/5.
WO 91/02155 Feb., 1991 WO.
Description
BACKGROUND of the INVENTION
The present invention relates to a propulsion system for a vehicle. It has particular utility in the propulsion and/or positioning of space vehicles.
The majority of propulsion systems in use today rely either on exerting forces against the surface over which they travel (e.g. cars, trains, funiculars (via their supporting rope) etc.), accelerating material which comprises the medium through which they travel in a direction opposite to the direction in which they are being propelled (e.g. propeller aircraft, power driven or manually propelled boats), taking advantage of thermally or gravitationally derived energy gradients (e.g. sailing boats, gliders or surf boards) or ejecting material in the form of fuel carried by the vehicle, either in part as in the case of a jet engine or totally as in the case of a rocket engine. Hitherto, there has been no alternative but to employ the latter method in order to propel or position a vehicle in space.
A problem associated with propulsion systems utilising the latter method is that the volatile fuel required to be carried by the vehicle represents a danger to any crew in the vehicle, the vehicle itself and its contents.
Another problem associated with such propulsion systems is that the range and manoeuverability of the vehicle is limited by the amount of fuel carried.
Yet another problem associated with such systems is that once the vehicle is accelerated, it can only be decelerated by expending further fuel.
The invention may also have utility in specialised terrestrial applications. For example, much effort has been expended in attempting to quieten the propulsion systems of boats. By obviating the need for propellers or such like, the system according to the present invention may provide quieter propulsion than has hitherto been possible.
The principles underlying the present invention will now be explained with reference to and as illustrated in FIGS. 1-9 of the accompanying drawings in which:
One method of moving a space vehicle a short distance is illustrated in FIG. 1. A device (D) inside the vehicle is arranged to project or move an object (W), of significant mass in relation to the mass of the remainder of the vehicle from one end of the vehicle to a receptacle (B) at the other end. It is known that if the object (W) is so projected to the right in FIG. 1, the vehicle will move a distance to the left (to the position S) in FIG. 1. After that movement, the object (W) and the receptacle (B) are at the positions W' and B' respectively. The distance moved will approach the length of the vehicle if the mass of the object (W) is relatively large in comparison to the mass of the vehicle, or will approach zero if the mass of the object (W) is insignificant in comparison to the mass of the vehicle. In any case, the effect will be that the centre of mass of the vehicle and object will not move. For this reason, it is thought that such an activity is of little or no use in propelling a vehicle, since it is assumed that, in returning the object (W), the vehicle will necessarily undergo an equal and opposite displacement to that which it underwent when the mass was originally moved from one end of the vehicle to the other.
Another method of moving a vehicle a short distance is schematically illustrated in FIG. 2. FIG. 2 shows a vehicle (1), on which is mounted a base plate (2), which in turn carries a pivot (O). An arm OA of length R is mounted with one end on pivot (O) and the opposite end carries an object (W) of mass M.
If a force were to be applied to the object (W) with the intention of moving its mass M around the semi-circular arc ACB at speed v, it might be thought that the sum of the centrifugal force acting on the pivot (O) during that motion would have components only in the direction Y and therefore that the vehicle would be moved in the direction Y. However, this is not the case because the force needed to give the initial momentum Mv to the object W will always cancel the component of the centrifugal force. In fact, the application of the initial force to the object (W) will result in an equal and opposite force being applied to the vehicle (1) so that the object (W) and the vehicle (1) would rotate in opposite senses about the pivot (O).
The rotary part of this reaction can be neutralized by arranging for a second identical object (W1) arranged as a mirror image of the first object (W) to rotate in the opposite direction as shown in FIG. 3.
Referring to FIG. 3, if the two objects (W1, W2) are of large mass compared to the mass of the vehicle, then it will be seen that as they begin to move around their semi-circular paths they will exert a relatively large centrifugal force (initially towards the right in FIG. 3) on the vehicle (1) which will in turn will be accelerated to a relatively high velocity by this force owing to its relatively low inertia. As the two objects (W1, W2) approach the point B (having passed points C and E), they will then exert similarly large centrifugal forces to the left in FIG. 3 decelerating the vehicle until it returns to the condition it had when the objects (W1, W2) were launched. Hence it will be seen that the motion of the objects (W1, W2) will be accompanied by an associated movement of the vehicle a distance D1 to the right as shown in FIG. 4. The vehicle moves from positions A to E in that Figure.
If, however, the objects (W1, W2) have a relatively low mass compared to the mass of the vehicle then they will exert a relatively small centrifugal force on the vehicle which will only be accelerated to a relatively low velocity owing to its relatively large inertia. When the masses then approach the point B (having passed points C and E), they will exert similarly low centrifugal forces on the vehicle in order to return it to its initial condition. Therefore, it will be seen that if the masses are relatively small (and hence the centrifugal force is less than in the previous paragraph), the vehicle will have moved a smaller distance D2 to the right. The motion of the vehicle in this case is illustrated in FIG. 5. It will be seen that the reduction of centrifugal force results in the vehicle moving a smaller distance. The vehicle moves from position A to position E in that Figure.
Consideration of the above two paragraphs and FIGS. 4 and 5, will show that the larger the relative mass of the objects (W1, W2) to the mass of the vehicle, the larger the displacement of the vehicle will be. If, for example, the vehicle were to be of negligible mass when compared to the sum of the masses of the objects (W1, W2), then the vehicle would move a distance 2R to the right in FIG. 3. If the vehicle were to have a mass equal to the sum of the masses of the objects (W1, W2), then the effect of the centrifugal force would be to move the vehicle a distance R to the right in FIG. 3.
It will be seen that, in each of the above examples, the centre of mass of the combined vehicle and object system remains in the same position.
As stated above, the fact that the centre of the mass of the combined system is not moved in each of the above examples means that such a method cannot be used to move a vehicle a distance greater than its own length.
However, if the centrifugal force exerted by the masses of the objects (W1, W2) as they travelled from position A to position B were to be reduced below the level seen in the examples above for that mass then the vehicle would be moved over a smaller distance. In other words, in a supposed first movement (in which centrifugal force is reduced), the vehicle would move a first (relatively short) distance in a direction opposite to the direction of movement of the masses.
Then, if the objects (W1, W2) were to be subsequently returned, in a second movement in which the centrifugal force was equal to that seen in the above examples, the vehicle would move a second (relatively long) distance in the opposite direction to the first movement. Clearly, after both the first and second movements had taken place the position of the objects (W1, W2) relative to the vehicle would be unchanged. Moreover, it will be seen that the combination of the first and second movements would result in a net movement of the vehicle and its contents in the direction opposite to said first movement. Hence, it will be seen how, if a way could be found of reducing the centrifugal force exerted by the objects (W1, W2) moving from one end of the vehicle to the other that the centre of mass of the combined system could be moved across space, that mass could thereby be transferred, and that the vehicle could be propelled through space.
It is well known that when a spinning gyroscope is mounted on a pivoted radius arm, so that the pivot is remote from the centre of the wheel forming the spinning mass of the gyroscope, and the gyroscope is subjected to a torque at right angles to the spin axis of the wheel (for instance by means of transfer through the radius arm) then the gyroscope precesses, that is rotates, about a precession-axis that is at right angles both to the spin-axis of the wheel and the applied torque provided that it is free to do so.
FIG. 6 shows a plan view of a spinning wheel, all of whose mass may be considered to be concentrated in its rim of negligible thickness and of radius r. The wheel is connected to a pivot (O) (which forms the centre of precession) by a light rod of length R. A torque T is applied to the wheel in the direction shown.
The mechanism of precession may better be understood by considering the highest and lowest points of the rim of the spinning wheel as illustrated in FIGS. 7A and 7B.
From FIGS. 7A and 7B, the application of the torque T may be considered as tantamount to the application of a force F1 to the top point of the spinning wheel and a force F2 to the bottom point of the spinning wheel, deflecting them and causing a change in the direction of their velocities from v to v' as shown. Thus both velocity vectors are deflected clockwise. It will be realized that an object whose velocity is constantly changing in a direction at right angles to its current velocity moves in a circle.
By conventional two-dimensional mechanics, a non-precessing mass moving in a circle only does so if it is subjected to a constantly applied force defined as the `centripetal` force.
The present inventors realised that by applying oppositely directed forces, (the effect of a torque,) to particles that are themselves, moving in opposite directions as a result of being part of the rim of a spinning wheel they could cause the spinning rim to circle about O without requiring a centripetal force.
It is known that a convenient means (for demonstration purposes) of applying a constant torque to a gyroscope is to offset the gyroscope on a shaft, which is supported at the end remote from the gyroscope by a joint, that allows the shaft to move both laterally and up and down, and to allow the weight of the gyroscope, together with the reaction force at the joint, to be the forces that apply the torque.
It is also known that when the wheel is spun up, suspended and released in this manner the gyroscope will precess at a rate .OMEGA. derived from the equation:
Where:
T--MgR--torque at right angles to shaft
M --- mass of the wheel g --- acceleration due to gravity
R --- length of the shaft
I --- moment of inertia of wheel
.omega. --- angular spin velocity of wheel
Further, it will precess about any point in the precessional plane so long as it is launched with initial conditions such that it finds itself travelling at the linear tangential velocity R..OMEGA. where .OMEGA. is determined from equation (1) inserting the value for the torque that so obtains.
With reference to FIG. 8, the present inventors realised that if two gyroscopes of identical mass M and spinning at the same speed .omega., but in opposite directions to one another, were mounted on equal rods with their remote ends pivoted in a frame (0,0') of negligible weight which was itself unrestrained, and were launched in an arc from A to B by whatever means (P), be it a spring, motor, ramp or chemical reaction, in such a way that, at the moment they found themselves being acted on by gravity supplying the torque, their launch velocity was exactly R..OMEGA. where:
[To see all the equations and figures clearly go to http://www.rexresearch.com/laithwat/laithw1.htm - N.I.]
It will be appreciated that if the wheels were not spinning and were then just `dead` masses and were given the same treatment (as far as that is possible given that they would then have NO TENDENCY to move of their own volition when subjected to a torque and would therefore have to be projected with considerable velocity to achieve a similar result), then the frame (0,0') would, (as explained with reference to FIG. 3), be deflected from a distance R from one side of the wheels to a distance R on the other side. The centre of mass of the system would not move.
The present inventors have conducted experiments which show that when a gyroscope is caused to precess by a torque whatever additional angular momentum it acquires combines with the angular momentum already in the spinning mass and if the axis about which it is caused to precess is remote from the centre of the wheel, that an additional linear momentum proportional to the linear tangential velocity of the total moving mass of the gyroscope about that said axis of precession is the only extra dynamic requirement. The experiments conducted further show that, once the gyroscope has been launched on its path of precession about a remote axis as described, the forces exerted by the gyroscope at that axis are largely those involved with application of torque to the gyroscope. Such forces that pass through the axis normal to the tangent at any point in the precessional path of the gyroscope are less than those calculated from the conventional formulae for derivation of centrifugal force of a non-precessing mass. Thus it follows that, provided it is correctly launched, the centre of mass of a gyroscope may be moved around a circle of precession from the one end of a diameter to the other without the full corresponding net force at the centre of precession.
The present inventors further realised that if the mass of the gyroscope could be transferred predominantly by a precession of the gyroscope without a substantial movement in the vehicle, (i.e. providing the first movement referred to above) and thereafter the mass of the gyroscope were to be returned to its original position in relation to the vehicle by means not involving precession (deriving the momentum for that movement from the remainder of the system) (i.e. providing the larger second movement referred to above), then the vehicle would be moved and if this cycle were to be repeated the vehicle would be propelled.
It is arranged that in the precessional motion of FIG. 8, the gyroscopes derive their momentum from each other.
According to a first aspect of the present invention there is provided a method of moving a vehicle in a first direction, which method comprises the steps of : connecting at least one gyrocope means to said vehicle; causing said gyroscope means to follow a path which involves at least one precession-dominated portion and at least one translation-dominated portion,
wherein in the precession-dominated portion, the mass of the gyroscope means moves in said first direction and an associated first movement of the vehicle in substantially the opposite direction to said first direction occurs, and, in the translation-dominated portion, the mass of the gyroscope means moves with an associated second movement of the mass of the vehicle in substantially said first direction, wherein said second movement is greater than said first movement and hence the vehicle moves in said first direction.
According to a second aspect of the present invention there is provided an apparatus for propelling a vehicle in a first direction, which apparatus comprises:
at least one gyroscope means adapted for precessional motion about an axis remote from the centre of said gyroscope means; means for causing the gyroscope means to follow a path which involves at least one precession-dominated portion and at least one translation-dominated portion,
wherein in the precession-dominated portion, the mass of the gyroscope means moves in said first direction with an associated first movement of the vehicle in substantially the opposite direction to said first direction, and, in the translation-dominated portion, the mass of the gyroscope means is moved with an associated second movement of the vehicle in substantially said first direction; and
wherein said second movement is greater than said first movement and hence the vehicle moves in said first direction.
Furthermore, the present inventors have conducted experiments which show that if the mass of the wheel of the gyroscope is not concentrated at an infinitely thin rim then an amount of centripetal force is developed which is required to constrain all parts to a circle, or precess, about the same centre 0. However, these experiments have verified that the centripetal force is still less than that predicted by the conventional formula for non-precessing masses.
The practical situation that would thereby be obtained is illustrated in FIG. 9. The gyroscopes would, as a result of their not being `perfect`, exert some centripetal force on the frame (0,0'). The frame would be moved a distance to the right as shown in that Figure, so that by the time the frame (0,0'), had moved from S to T, the gyroscopes have moved to Q and Q' respectively. However, when the gyroscopes are subsequently returned to the right hand side of the frame, the frame will be displaced by a distance 2R to the left in FIG. 9. Therefore, the combined result of the precessional motion and the translational motion would be to move the frame from position S to position U, i.e. over a distance less than the distance 2R obtained in the perfect case of FIG. 8 but nevertheless with a resulting movement in the centre of mass of the system that would not be achieved with `dead` masses.
Advantageously then, a high proportion of the mass of the gyroscope means lies in a plane at right angles to the spin axis of said gyroscope means and is located at a predetermined distance from said spin axis of the gyroscope.
Other experiments have shown that the greater the wheel spin velocity .omega. is in relation to the precessional velocity .OMEGA., the less centripetal force is developed. .OMEGA. and .omega. are related to the applied torque T and the moment of inertia I of the wheel by equation (1).
Preferably, the ratio of the angular velocity of the gyroscope means about its spin axis to the angular velocity of said precession is maximised.
In the absence of a gravitational field the torque to cause the gyroscope to precess in the first place has to be provided. This may conveniently be obtained from an identical gyroscope spinning in the opposite direction and with the same angular velocity as the gyroscope against which it is to be reacted so that the torque being applied to one gyroscope is equal and opposite to the torque on the other gyroscope, the net torque on the vehicle is nil and the two gyroscopes then precess in the same direction, as a pair, about a centre.
Preferably therefore, the apparatus comprises at least first and second gyroscope means such that the torque required for the precession of the first gyroscope means is provided by the second gyroscope means.
In order for this first pair of gyroscopes to precess about a centre remote from the centre of the gyroscopes, they must, as previously stated, be given a linear momentum proportional to their prospective linear tangential velocity when subjected to the applied torque. In a preferred embodiment of the invention this linear momentum may conveniently be derived from an identical pair of gyroscopes with identical attributes arranged as a mirror image of the first pair. In this arrangement the linear momentum required to launch each pair of gyroscopes on their precessional paths are equal and opposite and cancel out so that the net momentum outside the system is nil. Similarly when the two pairs of gyroscopes reach their diametrically opposite point the linear momentum, delivered when the torques are removed, are again equal and opposite and again cancel out leaving no net momentum outside the system.
Preferably then the apparatus comprises at least first and second gyroscope means such that the linear momentum required by said first gyroscope means in order to precess about an axis remote from its centre is derived from the second gyroscope means precessing in the opposite sense.
Advantageously, the apparatus comprises at least first and second pairs of gyroscope means, the torques required by each gyroscope means being provided by the other of said pair, and each pair providing the linear momentumrequired by the other pair.
Preferably, the path of the gyroscope means is such that the motion of the gyroscope means varies continuously between a substantially entirely precessional motion and a substantially entirely translational motion, thereby providing a smooth propulsion to the system.
A smoother propulsion can also be obtained by providing a plurality of groups of gyroscope means and arranging each group to impart said second movement the vehicle at a different time.
Some embodiments of the present invention utilise a gyroscope means which comprises a wheel which is driven by a central hub. A problem associated with such embodiments is that the degree of propulsion that can be provided by the apparatus is limited by the strength of the materials making up the hub itself.
Preferably therefore, said gyroscope means comprises a substantially annular rim which is driven by a means in contact with that rim.
Furthermore, the rim is preferably rotatably supported at a plurality of points around the rim. This has the further advantage that the level of propulsion that can be provided by the apparatus is increased in accordance with the number of means rotatably supporting the rim.
In a preferred embodiment of the present invention, the gyroscope means comprises two counter-rotating annuli which are retained in a frame means. This has the advantage that the torques exerted by each rim substantially cancel one another and that substantially no net torque is exerted by the frame on the vehicle.
The invention will now be described further, with reference to and as illustrated in FIGS. 10 to 28 of the accompanying drawings in which:
DESCRIPTION of the DRAWING
FIGURES
FIG. 1 is an illustration of a first method of moving a vehicle a short distance.
FIG. 2 and FIG. 3 are illustrations of a second method of moving of a vehicle
a short distance.
FIG. 4 is an illustration of the motion
of the vehicle of FIG. 3 if the masses of W1 and W2 are relatively large in
comparison to the mass of the vehicle.
FIG. 5 is an illustration of the motion
of the vehicle if the masses of W1, W2 are relatively all in comparison to the
mass of the vehicle.
FIG. 6 is a schematic illustration of a
gyroscope adapted to precess about an axis remote from the center of the
gyroscope.
FIG. 7A and FIG. 7B together form a schematic illustration of how a gyroscope
can move in a circle as a result of a torque being applied at right angles to
the spin axis of the gyroscope, without requiring the application of a
centripetal force to the center of the precession.
FIG. 8 is a schematic illustration of an
apparatus which can be used to demonstrate the principle underlying the present
invention.
FIG. 9 is a schematic illustration of
the motion of the apparatus of FIG. 8 if the wheels employed therein are
imperfect.
FIG. 10 is a perspective view of one of
four identical gyroscopic devices that comprise the first embodiment of the
present invention.
FIG. 11 illustrates the cycle of
operations of one of four identical gyroscopic devices that comprise the first
embodiment of the present invention.
FIG. 12 is a perspective view of a
constituent part of a second embodiment of the present invention.
FIG. 13 illustrates the motion of the one
of the gyroscopes in the second embodiment of the present invention.
FIG. 14 is a perspective view of four
such constituent parts as illustrated in FIG. 12 combined so as to eliminate
substantially any net torque on the vehicle being propelled.
FIG. 15 is a schematic view of an
apparatus, the view being used to explain the operation of a third embodiment
of the present invention.
FIG. 16 is a perspective view of a
constituent part of a third embodiment of the present invention and illustrates
the three dimensional space required for motion of that part.

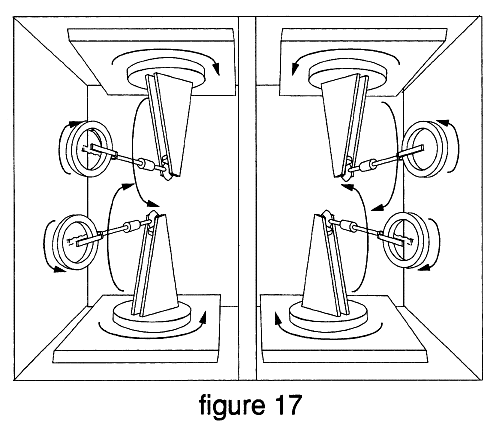

FIG. 17 is a perspective view of four
such constituent parts as illustrated in FIG. 15 combined so as to eliminate
substantially any net torque on the vehicle being propelled.
FIGS. 18, 19 & 20 are diagrammatic representations
of the forces developed during one cycle by a single gyroscope in the third
embodiment of the present invention.
FIG. 21 is a view in plan and elevation
of a constituent part of a fourth embodiment of the present invention.
FIG. 22 is a view in elevation of four
such constituent parts as depicted in FIG. 21 and arranged to eliminate any net
torque on the vehicle.
FIG. 23 is a perspective diagram of a
fifth embodiment of the present invention so designed to maximise the mass of
the gyroscope means both lying in a plane at right angles to the spin axis of
the gyroscope means and being located at a predetermined distance from the spin
axis and which is capable of being substituted for any two counter rotating
single gyroscopic means in any of the preceding four embodiments.
FIG. 24 shows the fifth embodiment
incorporated into the fourth embodiment.
FIG. 25 and FIG. 26 indicate two arrangements of FIG. 24 so as to eliminate
net torque on the vehicle.
FIG. 27 and FIG. 28 further illustrate the limiting alternative attitude of
the fifth embodiment with respect to the fourth embodiment.
ment with respect to the fourth embodiment.
DESCRIPTION of a PREFERRED
EMBODIMENT
Referring now to FIG. 10, which shows one of the four gyroscope units of the first embodiment of the present invention, each gyroscope unit comprises a horizontal base plate (30), a cradle means (32,34), which cradle means supports a translatable shaft (22) and enables the rotation of that shaft about a vertical axis AA which passes through the centre of the shaft and a horizontal axis BB which also passes through the centre of the shaft and intersects the axis AA. The shaft (22) in turn carries a gyroscope (23) which is fixed against movement along the shaft but is free to rotate around the shaft.
The base plate 30 is arranged to be secured to the vehicle to be propelled by the system.
In more detail, the cradle (32,34) comprises an outer U-shaped member (32) which is connected to the base plate (30) by a pivot (31) which enables the outer U-shaped member (32) to rotate about the vertical axis AA. The outer member (32) is formed by a substantially horizontal central section (41) which has an arm (42,43) depending vertically from each of its ends. Each of these arms (42,43) carries a pivot (35) which is disposed on the axis BB.
The inner member (34) of the cradle is formed from a relatively long U shaped member (21) and a pair of side arms which extend perpendicularly outwardly from the long member at a position half way along its length. The long member consists of a substantially horizontal section (46) from either end of which an arm (47,48) extends vertically upwardly. Likewise each of the side arms (44) has a part extending vertically upwardly (50,51) from its end. Each of the arms (47,48) extending vertically upwardly from the ends of the long member (21) carries a rectangularly shaped bearing (24,25) towards its upper end. Each of the vertically depending arms (50,51) on the side arms defines a recess which is engaged by the respective pivot (35) on the outer cradle member (32). When each of the horizontal sections (41,46) of the inner and outer cradle members (32,34) are in a horizontal position then the centre of the bearings (24,25) which define the axis `CC` are positioned to be at the same height as the pivots (35) so that the axis `CC` intersects the axes `AA` and `AB`.
A shaft (22) of substantially regular rectangular cross-section and of a length slightly greater than twice the distance between the bearings (24,25) is held by the two bearings (24,25). Each of these bearings is configured so as to prevent rotation of the shaft relative to the inner member (34) but to allow it to be linearly translated through the bearings. A rack (29) is cut into one side of the shaft and extends along the shaft by a distance substantially equal to the distance between the two bearings (24,25). A motorised bearing (27) is fixedly attached to the shaft (22) at its mid point which lies between the two bearings (24,25). A gyroscope (23) is in turn carried by this motorised bearing.
Finally, the means for translating the shaft is provided by a motor (26) which is supported by the inner cradle member (34). The motor (26) drives a spur gear (28) which engages with the rack (29) on one side of the shaft (22).
To enable the gyroscope unit to be operated outside a gravitational field a means is provided for exerting a torque about the pivot (35). This torque providing means consists of a solenoid actuator (36) which is attached to the upright arm (42) by a pivoted clamp (37). The solenoid (36) actuates a rod (39) which in turn acts on a connector (40) which in turn engages the upright member (51) of the inner part of the cradle (34).
It will be appreciated by those skilled in the art that power must be supplied to the torque providing means (36), the actuating motor (26) and the motorized bearing (27). A person skilled in the art will be able to envisage a number of ways of supplying this power to the apparatus.
In order for the means (36) to exert a torque on the gyroscope (23) it will be necessary to supply a torque which prevents the vehicle (with the base plate (30) and outer cradle member (32)) rotating around the pivot (35). This may be achieved by securing an identical gyroscope unit to the vehicle and it to precess about the axis AA in the same direction as the above described first gyroscope unit but with the gyroscope in the second unit spinning in the opposite direction to the gyroscope in the first unit. For example, the inner cradle of the second unit may also be fixedly attached to the base plate (30) whereby the torques on that base plate owing to the precession of the two gyroscopes cancel.
Alternatively, in a terrestrial application of the first embodiment, the required torque may be provided by the weight of the gyroscope, in combination with an equal and opposite reaction provided through the vehicle to the base plate (30).
It will further be appreciated that it will not be possible to supply each of the gyroscopes of the first and second gyroscope units with the requisite momentum along their precessional path without imparting an equal and opposite momentum to the vehicle. The requisite momentum for the precession of the first gyroscope unit may be obtained from a third gyroscope unit identical to the first unit and in which the pivots (35) of that unit also lie along the axis BB. The gyroscope of that third unit may be set spinning in the same direction as the gyroscope (23) of the first unit and caused to precess in the opposite direction to the gyroscope of the first unit, whereby the net linear momentum required to launch the first and third gyroscopes would be zero. In order to provide the torque required for the precession of the third gyroscope unit a fourth gyroscope unit may be provided which precesses about the same axis as the third gyroscope unit and in the same direction as the third gyroscope unit but with the gyroscope of the fourth unit spinning in the opposite direction to the gyroscope of the third unit. Furthermore, the fourth unit supplies the requisite launch momentum for the second gyroscope.
Since the gyroscopes of the first and third gyroscope units are spinning in the opposite direction to the gyroscopes of the second and fourth gyroscope units then it will be seen that the torques required to start the gyroscopes spinning are also cancelled in the above arrangement. Hence, no net torque is exerted on the vehicle.
It is to be appreciated that in terrestrial applications, some or all of the required torque and linear momentum may be provided by the medium through which the vehicle is travelling, or the surface over which the vehicle is travelling. For example, the torque may be provided by reaction against rails along which the vehicle is travelling, or, in the case of a boat, by reaction between the keel and the water.
Preferably, however, the torques and linear momenta will also be balanced in a propulsion apparatus for terrestrial use. For example, in the case of a propulsion system for a boat this has the further advantage that the water is less disturbed and quieter propulsion results.
The cycle of operations of the first embodiment of this invention is shown in FIG. 11. For simplicity only the ends (47,48) of the inner cradle (34), the gyroscope (23), with the direction of spin of gyroscope (23) indicated by the arrow, and the motor (26) of the first gyroscope unit are drawn. At `A` a torque is applied to gyroscope (23) and the system is allowed to precess to `B` where the torque is removed. The motor (26) now operates and attempts to return the assembly to its previous position in space but because the gyroscope (23) is massive with respect to the remainder of the system the supports move rather than the gyroscope (23) as shown at `C`. The gyroscope (23) is again caused to precess to `D` as previously, the torque once more removed and the motor reversed. The supports again move further than the gyroscope (23) as shown at `E` and the whole system has been caused to translate a distance `S`. The system will be seen to be in the same position as at `A` and the whole cycle may be repeated.
It will be realised that the operations of the other three gyroscope units may be carried out in synchronism with the operation of the first gyroscope unit such that each of the gyroscopes will be translated in the same direction at the same time.
In order to reduce the step like nature of the movement of the vehicle being propelled a number of other groups of four gyroscopes may be provided. It will be understood that each of these may be operated serially so as to provide a steady succession of movement to the vehicle and thereby smooth the propulsion of the vehicle.
Another method of smoothing the propulsion of the vehicle is to combine the translational and precessional part of the gyroscope cycle into a single compound motion so as to allow the proportion of translational and precessional motion to vary smoothly throughout that cycle. The second embodiment of this invention is an example of an apparatus which achieves this.
Referring now to FIG. 12, the apparatus of the second embodiment consists of three principal parts. The first of these is a means for rotating the direction of the spin axis CC of a gyroscope (60) about a perpendicular axis AA which intersects the axis CC, the second of which is a means for causing the centre of the gyroscope to follow a circular path about an axis BB which is parallel to the axis AA and displaced therefrom by distance D, and the third of which is a means (80,81) for rotating the gyroscope (60) about its own spin axis CC.
The means for rotating the direction of the spin axis of the gyroscope about the first axis AA comprises a horizontal bar (63) rotatably driven about the axis AA by a shaft (62) which is in turn connected to a motor ( not shown). The bar (63) has two arms (64,65) which depend vertically downwardly from each end of the bar (63). A horizontal shaft (61) is carried between the arms (64,65). The gyroscope (60) is rotatably and slidably supported on the shaft (61) at a point intermediate the two downwardly depending arms (64,65). In this way the direction of the spin axis CC of the gyroscope is constrained without dictating the position of the gyroscope along the shaft (61).
The means for causing the centre of the gyroscope to follow a circular path about the parallel axis BB comprises a lower shaft (75) which pivotally supports a substantially horizontal second bar (70) which is thereby rotated about the axis BB, (which axis passes through a first end of the bar (70)), by a motor (not shown) at an angular velocity which is twice that of the angular velocity of the rotation of the upper bar (63). A vertical shaft (76) is pivotably supported at the opposite end of the bar (70) at a distance D from its first end and is fixedly attached to the base of a substantially U-shaped member shown generally at 71. The U-shaped member (71) comprises a horizontal base part which has two upwardly extending arms (72,73) at its ends, each of these arms having a bearing through which the shaft (61) passes. These bearings support the shaft (61) on either side of the gyroscope (60), sleeves (77,78) being provided around the shaft (61) to maintain the position of the gyroscope between the two upwardly extending arms (72,73). Each of these sleeves is preferably of an equal length, thereby positioning the centre of the gyroscope (60) directly above the axis of that shaft (76). In this way the centre of the gyroscope (60) is constrained to follow a circle centred on the vertical axis BB and of radius D, where the distance D is smaller than one quarter of the distance between the downwardly depending arms (64,65) less one half the external distance between the upwardly extending arms (72,73).
The means for rotating the gyroscope about its own spin axis comprises a motorized bearing (not shown) similar to that described in relation to the first embodiment. Those skilled in the art will be able to envisage a number of ways in which the required power can be supplied to the motor.
Each of the shaft (62) and the lower shaft (75) is arranged to be attached to the vehicle to be propelled.
As with the first embodiment of the present invention, the torque developed or required in the precession of the gyroscopes may be obtained from another "mirror image" system so that the two torques cancel leaving no net torque on vehicle. Also, again as with the first embodiment of this invention, any resulting uncancelled forces may be provided by another gyroscope unit. In practice therefore several gyroscope units may be employed together as shown in FIG. 14.
The operation of the unit of the second embodiment of the invention will now be described with reference to FIG. 13. The rotation of bar (63) about axis `AA` is at half the rate of rotation of the arm (70). When these two motions are combined the motion of the gyroscope is substantially that depicted in FIG. 13, which shows the sequential positions of the gyroscope for one half turn of the bar (63). It will be seen that the gyroscope moves from one end of the shaft (61) to the opposite end of the shaft (61) in the same period as the shaft is rotated by 180.degree.. The way the gyroscope is depicted in FIG. 12 corresponds approximately to position (H) in FIG. 13.
Before bar (63) completes a whole turn the gyroscope has to make a second complete path about its locus but during the second turn the direction of spin of the gyroscope is opposite to the direction in which it was spinning on the previous turn. The direction of torque demanded by, or that must be applied to, the gyroscope has therefore to be reversed each time the gyroscope passes position (E) in FIG. 13.
From FIG. 13 it will be seen that the motion of the gyroscope is essentially in two parts; first when it is undergoing substantially precessional motion between positions (H) and (B2) corresponding to position (B) but on the second revolution around the axis `BB` and second when it is undergoing substantially linear translation between positions (D) and (F). In both revolutions the direction of linear translation is in the same direction and will tend to impart a linear cycle of momentum to the vehicle while the motion between positions (H) and (B2), being substantially precessional, develops significantly less momentum.
Combined in the manner described it is possible to provide a cyclic pulse of momentum in the opposite direction to the linear direction of translation of the gyroscope, and provide a smoother propulsion than is provided by an apparatus such as the first embodiment, in which the motion of the gyroscope may be divided into a purely precessional part and a purely translational part.
Just as in an electric circuit, a voltage applied across a resistor causes a current to flow in that resistor, so equally a current of that value being passed through that same resistor will cause a voltage to appear across it, so a torque may be seen as the cause of a precession or conversely that precession may be seen as the cause of a torque. This is of especial significance with respect to the third embodiment of the invention.
Generally, the operation of the gyroscope unit of the third embodiment will now be explained with reference to FIG. 15. In that Figure, a gyroscope (M) is precessed around a horizontal circle, the torque on the gyroscope being provided along a radius of that circle, and the axis of spin of the gyroscope at all times being tangential to that circle, the wheel subsequently being returned along a path which lies in the plane of the wheel.
The operation of the third embodiment of the present invention can be understood by considering the arrangement of FIG. 15 in a situation of zero gravity and ignoring, for the present, the fact that any torque in one direction is only produced as the result of an equal torque in the opposite direction. In operation, the torque motor twists the shaft (R) which causes the wheel (M) to precess from A to B in a horizontal plane. This is a precessional stroke. At B the torque is removed and a second return motor, incorporated as part of the pivot (O), drives the shaft (R) in a downward semicircle, between the supporting plates (G, G'), back to A. This is a reaction stroke. If, instead of being precessed from A to B by an applied torque, the wheel were forced round the same path, the torque motor being removed so that the solid shaft were not interrupted, then the wheel would help itself to the amount of torque required to maintain that rate of precession, from the bearings at the pivot (O).
The gyroscope unit of the third embodiment of the present invention is shown in FIG. 16. The unit has a horizontal base plate which rotatably supports a horizontal turntable which is free to rotate about a vertical axis through its centre. A motor is provided to rotate the turntable relative to the base. A pair of parallel-spaced substantially triangular plates extend vertically upwardly from the turntable. A horizontal lower bevelled gear is disposed directly above the centre of the turntable and is carried in between the two upwardly extending plates. The lower bevelled gear is fixed against rotation relative to the base plate. An upper vertical bevelled gear is pivotally mounted between the uppermost ends of the upwardly extending plate. The upper bevelled gear and lower bevelled gear are of equal size and are arranged to mesh with one another. A pendulum shaft is carried in plane parallel to the two upwardly extending plates by the upper bevelled gear. The free end of the pendulum shaft is provided with a fork which is arranged to rotatably support the gyroscope wheel.
The bevel gears of the third embodiment enable the precession and reaction strokes to be geared together, such that, for rotation of the support plates (G, G') fixed to turntable (J) with respect to the baseplate (H), the shaft (R) carrying the wheel is rotated by the same amount, using the bevel gears (at O) in place of the return motor shown in FIG. 15. Hence, the gyroscope unit of the third embodiment of the present invention is driven by a single motor so that for every 180.degree. of precession in the horizontal plane it performs 180.degree. of reactive rotation in the vertical plane.
The resultant motion may now be seen to take place entirely within the space ABCDEFGH of the theoretical circumscribing box and, as above in FIG. 16, never enters the other half of the box at all.
Looking in plan, i.e. downward on plane ABCD, the motion of the wheel is seen to be as in FIG. 18. In the parts of the path in the lowermost half of that Figure, precession dominates and mass transfer is taking place, whereas, in the parts of the path in the uppermost half non-precession dominates and a reaction force is developed.
FIG. 19 shows the elevation as viewed into plane ABFE for a full 360.degree. of rotation the turntable. The torque demanded at the centre point is seen to alternate between one half rotation and the next.
FIG. 20 shows the elevation as viewed into plane ADHE. In addition to the alternating torque required, there are seen to be alternating reaction forces parallel to AE and BF which do not therefore contribute to propulsion of the vehicle.
These forces along with the torque which has to be provided by the base (H) may be cancelled out by additional similar arrangements in mirror image.
On the other hand, FIG. 19 shows that the forces parallel to AB and EF do not cancel but instead combine to drive the base in one direction. The cancellation on one axis and supplementation on another at right angles to it is a fundamental property of three dimensional space and is also exemplified by the use of the left and right hand rules of electromagnetic theory.
In order to cancel the actual torque developed in driving the wheel on the turntable (J) round the baseplate (H) an identical turntable may be mounted alongside on the same baseplate with the second wheel occupying the space DCJIHGKL (allowing such additional space as might be required for clearance). The two wheels spin in the same direction when adjacent but are driven in mirror image paths by equal and opposite torques from the same motor resulting in no net torque on the vehicle.
Similarly this pair of wheels develop a net torque in the plane DCGH against the baseplate which may be cancelled by another pair of identical wheels mounted immediately beneath the first pair, again as a mirror image of them. The four wheels may then be driven by a single motor so mounted that it is free to rotate on baseplate (H) and all its power is absorbed by the losses in one pair of wheels being exactly equal to the losses in the second pair while the sum of these losses is supplied by the motor(s) typically though not exclusively when the gyroscope units illustrated in FIG. 16 are arranged together as in FIG. 17.
In the fourth embodiment of the invention FIG. 21 shows a frame F on which is mounted a turntable T capable of being rotated with respect to F by a motor M. A motorised gyroscopic means G, which may be similar to that described in relation to FIG. 10 below, is rigidly mounted in a carrier B. This carrier is located by flanged wheels S in turntable T so hat it is free to rotate about an axis E normal to the plane of the turntable but will be carried round by the turntable. The axis E is substantially at right angles to the axis of rotation of the gyroscopic means G. An actuator A is fitted in such a manner as to be able to operate a clamp C and prevent the free rotation of the gyroscopic means and its carrier with respect to the turntable.
In operation, the gyroscopic means is first supplied with power and allowed to reach its designed operating rotational speed. The motor M is energised causing the turntable to rotate. At .PI. the actuator is activated clamping the frame B to the turntable and causing the gyroscopic means thereby to be forcibly precessed through an arc of 180.degree.. At 2.PI. the actuator is released so that the frame B is free to rotate while the turntable continues turning a further 180.degree. back to .PI. without stopping. The actuator is again energised and the cycle repeated.
During the first half of the cycle just described the force acting upon the gyroscopic means to maintain it in the prescribed arc is less than that calculated were the gyroscope means a simple non rotating object of the same mass. During the second half of the cycle the full calculated force is required. Thus the relative movement of the effective centre of mass of the whole apparatus with respect to the frame F takes place with a fraction of the reaction upon the frame during the first half cycle F compared to the reaction upon the frame during the second half cycle, resulting in an overall transfer of mass in direction P.
In practice the torque developed by the gyroscopic means on the carrier B has to be provided by an identical inverted turntable complete with an identical counter rotating gyroscopic means, carrier, actuator and clamp, both turntables driven by the same motor. The net torque required to maintain rotation of the turntables as just described and the angular momentum developed when the carrier(s) B are clamped is supplied from an identical mirror image pair of turntables such as the arrangement illustrated in FIG. 22. Such an apparatus as illustrated in FIGS. 21 and 22 or those described in the following FIGS. 23 to 28 inclusive are not necessarily limited to one gyroscopic means per turntable and a number of such gyroscopic means might be attached symmetrically to each turntable provided that the arrangement is repeated for reflecting and balancing turntables.
For clarity, each gyroscopic means thus far described has been considered to consist of a simple, single, motorised bearing with a massive outer rim. However, if the mass of the rotating part of each gyroscopic means is concentrated in a `thin` rim, to the extend indeed that the entire centre of the gyroscopic means were absent, the theoretical gyroscopic effectiveness of such mass would be increased. If an identical rim, revolving in the opposite direction, be mounted alongside the first rim, the torque required to cause one rim to precess would always balance that required by the second rim. Furthermore the forces required to develop this torque are provided at either end of a diameter where they are needed and not through the shafts, hubs and webs, thereby concentrating the highly stressed sections to two compact zones with reduced risk and lower weight penalty.
FIG. 23 is a simple perspective sketch of such an arrangement where G and G' are the two rim-only gyroscopic means, M is a common motor driving both rims and mounted within the enveloping carrier B to which are fixed a series of rotating supports R that locate the rims. The carrier B is here shown with flanged wheels S to mount this unit into a turntable as described in the fourth embodiment and illustrated in FIG. 24.
FIGS. 25 and 26 show two arrangements of the fifth and fourth embodiments so combined as to illustrate that mass transfer may be derived from the difference in centrifugal force between rapidly spinning masses being precessed and being swung round an arc without precession as firstly
a) in FIG. 25 by arranging for the effective mass transfer P and P' of two identical counter rotating systems to cancel and combining the effective difference of resultant centrifugal forces C and C' or as secondly b) in FIG. 26 by summing the effective mass transfer P and P' and arranging for the effective centrifugal forces C and C' to cancel.
FIGS. 27 and 28 show the fifth embodiment combined with the fourth embodiment turned through 90.degree.0 at the start of the cycle to indicate that the claim to mass transfer does not rely in particular to the relative angle the fifth embodiment may have with respect to the fourth embodiment at the commencement of a cycle provided that an arc of precession of approximately 180.degree. is followed by a further arc of 180.degree. without precession whereby the transfer of the mass of the gyroscopic means is transmitted to the vehicle.
In other words, the purpose of FIGS. 27 and 28 is to clarify the claim that mass transfer is achieved is not limited to any one initial attitude of the fifth embodiment with respect to the fourth embodiment but may apply to any attitude provided that the axis E is substantially normal to the plane of mass transfer and, by definition, is substantially parallel to the axis of precession.
Notwithstanding the use of `single gyroscopic means` being described in each of the preceding three other embodiments of the invention, the `twin gyroscopic means` of the fourth embodiment may be substituted for the appropriate pairs of single gyroscopic means in each of the former embodiments.
It will be seen how the present invention provides a propulsion system which does not necessitate the carriage of volatile fuel and which need not accelerate the vehicle in a conventional sense since it ceases to move the vehicle when it is inactive. Furthermore, it will be seen how the propulsion system may be powered by a renewable energy source such as stellar radiation or may be powered by a deliberately focused distant energy source such as a microwave power beam.
Laitwaite, E.: "1975 --- A Space Odyssey"; Electrical Review 196 # 12/13 (29 March/4 April 1975), pp. 398-400
"The Continuing Story of Gyroscope Magic"; Electrical Review 197, pp. 675-676
"Roll Isaac, Roll" (Pt. 1) Electrical Review, 204 # 7 (16 Feb. 1979), pp. 38-39, 41; ibid., (Pt. 2), Vol. 204 # 11 (16 March 1979), pp. 31-33
"Propulsion by Gyro"; Space, Vol. 5 (Sept.-Oct. 1989), pp. 36-39;
Bova, Ben: "None So Blind"; Analog (June 1975), pp. 5-6, 8, 176
Coates, R.: "Professor Laithwaite & Gyroscopes"; Electrical Review 196 (1975): 506-507
"I Will Not Roll Yet, Isaac Newton"; Electrical Review 205 # 15 (19 Oct. 1979), pp. 43-44
Walgate, Robert: "Eric Laithwaite Defies Newton"; New Scientist (14 Nov., 1974), p. 470; ibid., (28 Nov., 1974), p. 679; ibid.,
(19 Dec., 1974), p. 895; ibid., 9 Jan., 1975), p. 97; ibid., (6 Feb., 1975), p. 341; ibid., (13 Feb 1975), p. 407; ibid.,
(13 Mar., 1975), p. 669.
From Rex Research @ http://www.rexresearch.com/laithwat/laithw1.htm
Xtra image - http://aether-physics.com/websitepics/gyrotest.jpg
And see How to Build a Flying Saucer After So Many Amateurs Have Failed @ http://nexusilluminati.blogspot.com.au/2011/01/how-to-build-flying-saucer.html
For more information about antigravitic systems see http://nexusilluminati.blogspot.com/search/label/antigravity
- See ‘Older Posts’ at the end of each section
YOU can help this unique
independent website’s author survive in a small cabin in a remote rainforest
Donate any amount and receive at least one New Illuminati eBook!
Please press the button -
Xtra Image – http://www2.eng.cam.ac.uk/~hemh/gyroscopes/htmlgyroscopes.html
Video - http://youtu.be/MHlAJ7vySC8
For further enlightening
information enter a word or phrase into the random synchronistic search box @ http://nexusilluminati.blogspot.com
And see
New Illuminati – http://nexusilluminati.blogspot.com
New Illuminati on Facebook - https://www.facebook.com/the.new.illuminati
New Illuminati Youtube Channel - http://www.youtube.com/user/newilluminati/feed
The Her(m)etic Hermit - http://hermetic.blog.com
DISGRUNTLED SITE ADMINS PLEASE NOTE –
We provide a live link to your original material on your site - which
raises your ranking on search engines and helps spread your info further! This site
is published under Creative Commons Fair Use Copyright (unless an individual article
or other item is declared otherwise by copyright holder) – reproduction for non-profit
use is permitted & encouraged, if you give attribution to the work &
author - and please include a (preferably active) link to the original (along
with this or a similar notice).
Feel free
to make non-commercial hard (printed) or software copies or mirror sites - you
never know how long something will stay glued to the web – but remember
attribution! If you like what you see, please send a donation (no amount is too
small or too large) or leave a comment – and thanks for reading this far…
Live long
and prosper!
From the New
Illuminati – http://nexusilluminati.blogspot.com
ReplyDeletehttp://www.youtube.com/watch?v=XEQdvYFMBAU&feature=youtube_gdata_player
Laithwaite was and is correct. To understand why spinning objects levitate we firstly need to understand how gravity works:
ReplyDeleteThe hydrogen atom [and helium atom] generate helically polarized electromagnetic radiation (gravity radiation) from polar regions that bombards neighbouring atoms drawing them towards the source of the radiation. Gravity radiation then causes the nucleus of the neighbouring atom to spin axially (the 'motor effect') and, at the same time, synchronizes the spin of the electrons in both atoms. The neighbouring atom then, in turn, generates helically polarized electromagnetic energy (the 'generator effect'). Both atoms spin axially in the same direction. Hence, the gravitational forces from both atoms pull in the same direction and the forces are additive. The gravitational Constant G is shown to be the instantaneous alternating magnetic force between any two electron-magnets in neighbouring atoms and, hence, the gravitational force F is proportional to G x m1 x M2 (where m1 and M2 represent the electron count of neighbouring atoms).
Then we need to understand why all objects fall at the same speed:
Why all bodies fall at the same acceleration and speed.
As a falling atom [or m1] approaches the source of the gravity waves [the Earth, or M2], the relative frequency of the gravity waves passing through m1 increases, resulting in an increasing force of attraction [as predicted by Newton's 'equation 1']—but only up to a point, beyond which the increasing centrifugal force on the electrons prevents the electrons from following the synchronizing spin of the gravity waves; then, the gravitational force, from M2 upon m1, will cease. Thus, centrifugal force creates negative feedback, resulting in an 'automatic brake' on any increase in the falling-speed of m1 towards M2—i.e. every atom accelerates to a speed of 32 feet per second [after Galileo], at which point orbiting electron-magnets fail to respond to gravity waves: Consider two objects m1 and M3 falling towards M2 [Earth]. When released, both objects will accelerate. But M3, the heavier object (with more mass), will reach 32 feet per second before m1. So the 'gravitational brake' will be applied to M3 before m1. M3 thus becomes weightless, momentarily, allowing m1 to catch-up. Then m1 and M3 begin to accelerate again, together, from the same new position. The alternating magnetic waves from M2 switch on and off 1,420,405,800 times every second [the hydrogen frequency], hence the 'automatic brake' activates 1,420,405,800 times every second. Hence, all objects fall at the same speed. This mechanism explains why and how spinning discs, and objects caught in a tornado, levitate. See www.MauriceCotterell.com 'How Gravity Works' and 'Why all objects fall to Earth at the same speed'.
Thanks. Thus a steel ball with a high magnetic charge will not fall at the same rate as an (otherwise identical) degaussed one, as demonstrated by various experimenters.
Delete
